Panoramic squash court

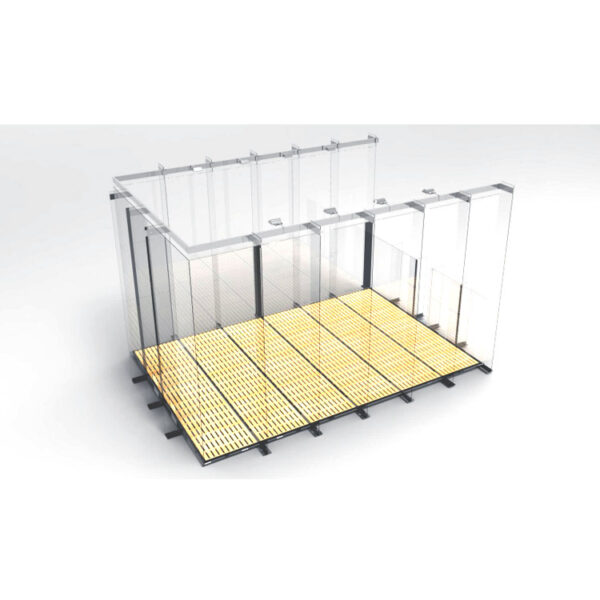

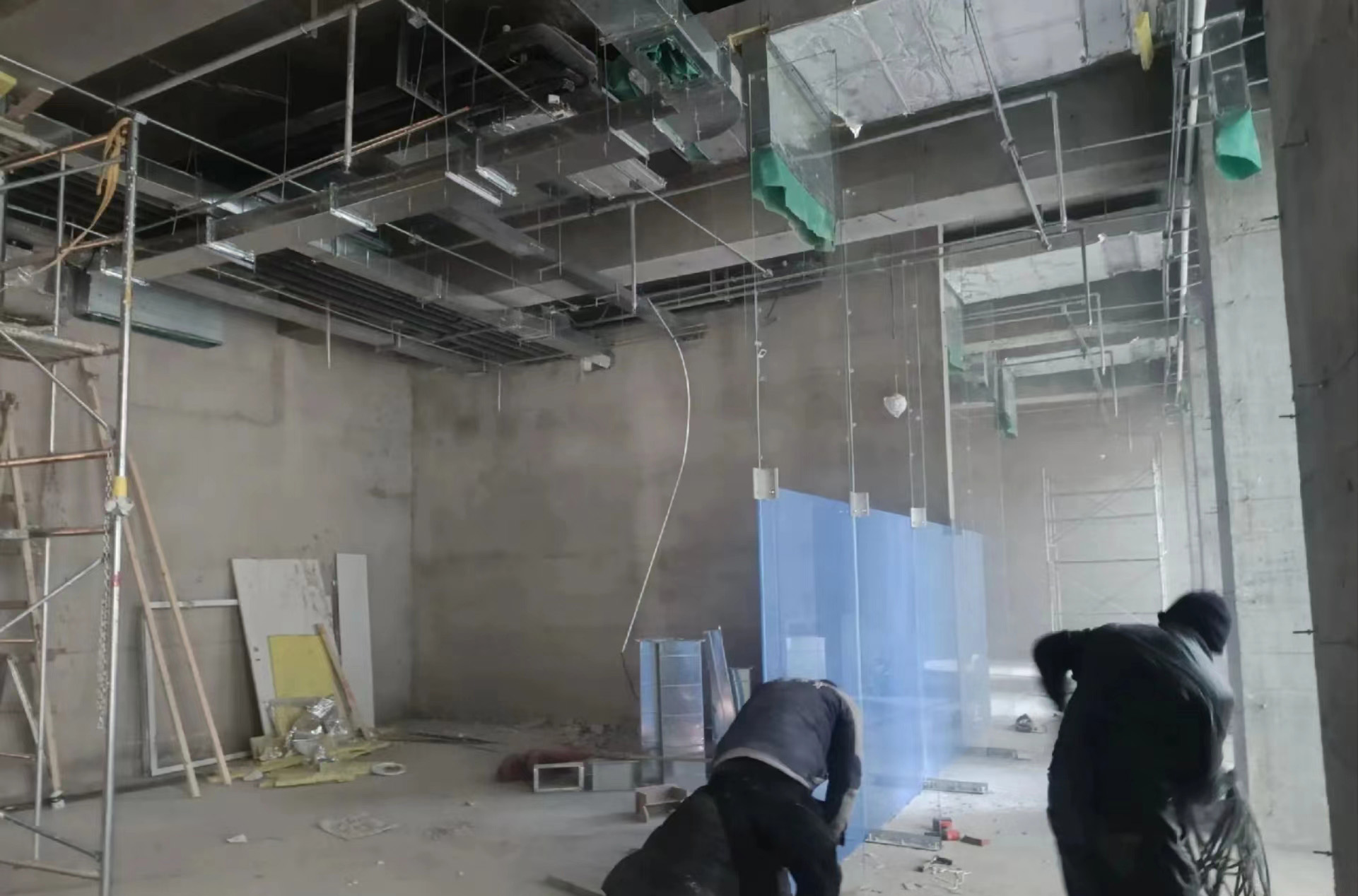

Panoramic squash court is an advanced squash court integrated equipment, which is conducive to the television broadcast of squash matches and the interactivity of audience viewing. That is, the customer provides an open space that meets the height, width, and length, and our company’s construction personnel perform a combined installation of the squash court.

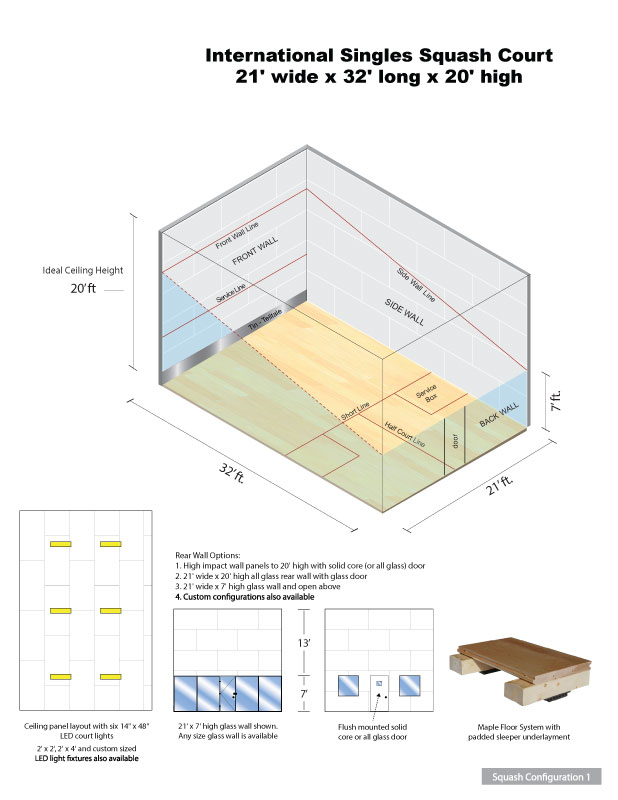

Panoramic squash court venue size: 10*7*5.5 meters (height), of which 5.5 meters is the lighting installation height. Installation requires a 2-meter wide channel on all sides. Compared with the assembled type, it contains light integrated parts. The net internal dimensions of the completed squash court are: 9.75*6.4*5 meters (height), of which the height of the front wall boundary is 4.57 meters and the height of the glass back wall is 2.13 meters. These dimensions comply with the requirements of the International Squash Federation for squash singles competition venues. The size of the doubles squash court is slightly larger. The finished internal net size is: 9.75*7.62*4.57 meters (height), of which the height of the front wall boundary is 4.57 meters and the height of the glass back wall is 2.13 meters. The dimensions also meet the requirements of the International Squash Federation for squash doubles venues.

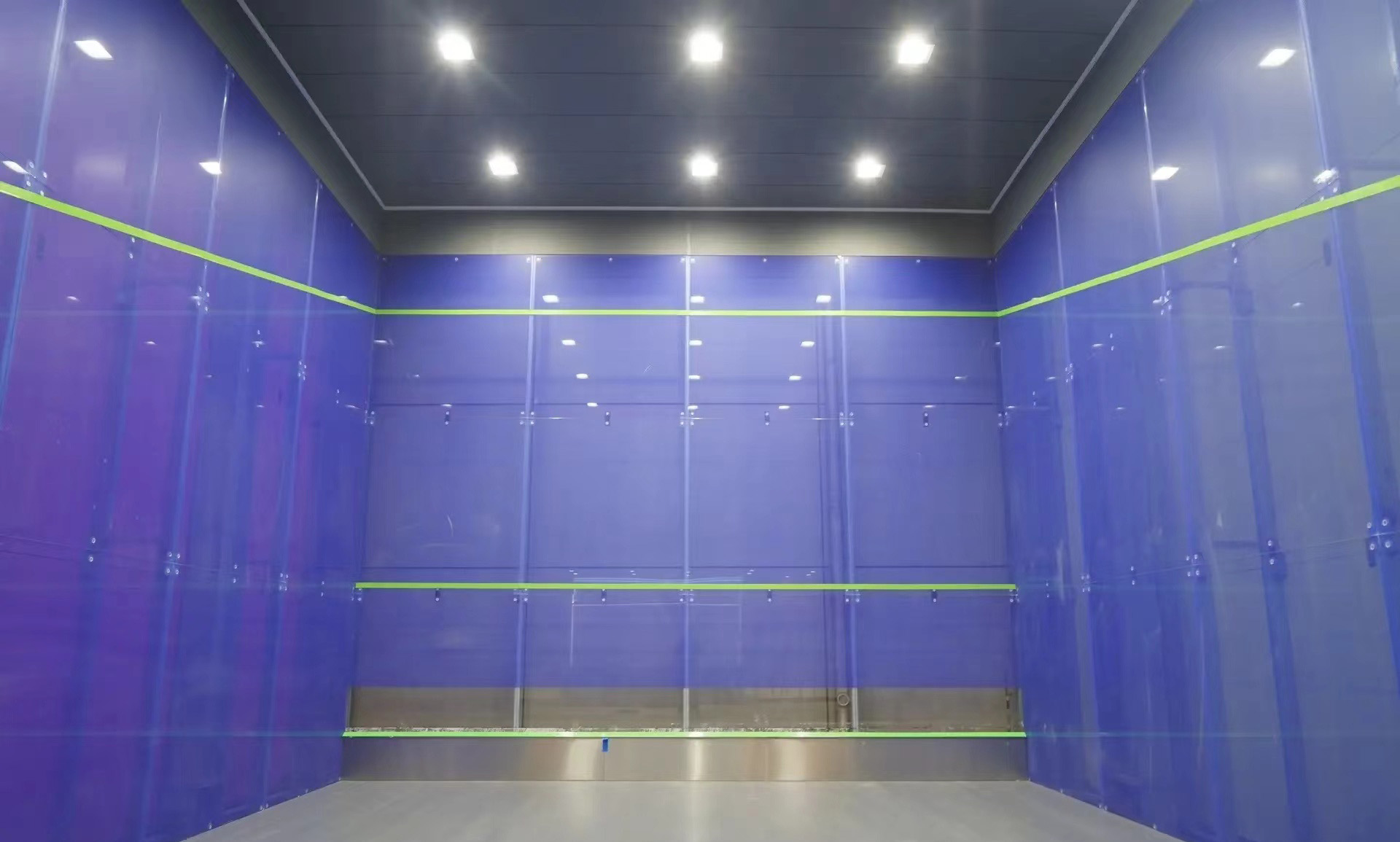

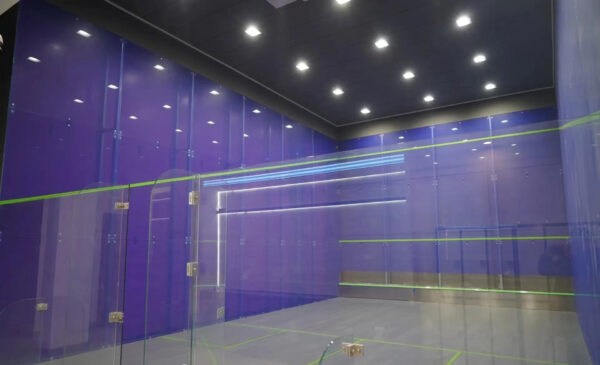

Panoramic squash court system：
The front wall and side walls are made of specially processed glass materials or organic materials according to the corresponding installation specifications. Fix the wall system after installing the studs through the floor frame. The wall material system adjusts the color and lighting to allow athletes in the venue to focus on the court during the game and avoid being disturbed by spectators outside the venue. At the same time, the television broadcast becomes simpler and the effect is better through the set observation holes. The spectators’ enjoyment of watching the game is greatly improved.

Sports wood flooring system：
The structure of the sports floor system adopts a single-layer keel structure. The panel uses 20-22mm thick Maple birch flooring, moisture-proof membrane, 9mm multi-layer board, 40*50mm keel, and 10mm elastic rubber pad. Maple birch wood flooring has high toughness and good wear resistance; it has good bouncing performance against the ball and regular ball paths; it has excellent vibration absorption and earthquake resistance, and good sound insulation effect; the unique elastic soft cushion provides elasticity and withstands heavy pressure for the reinforced maple wood flooring. , Reduce the possibility of athletes jumping and shock injuries.

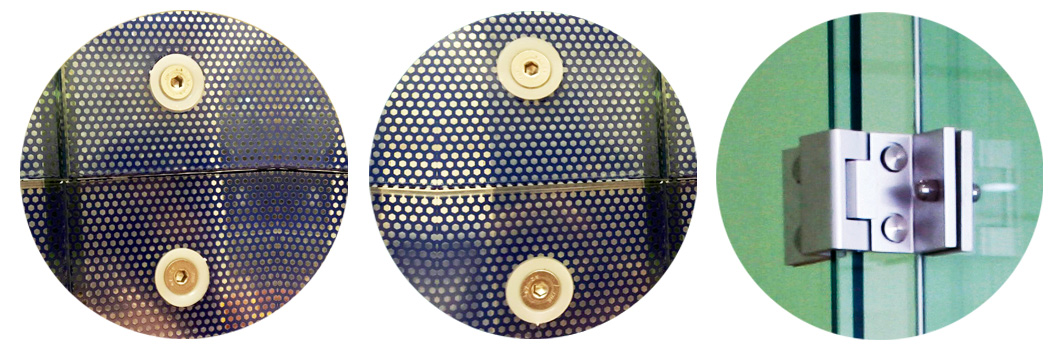

Glass hardware system:
The rear wall glass is made of 12mm tempered glass, and the edges of the glass require fine side walls and glass supports. It is characterized by high strength, impact resistance and heavy load resistance. If accidentally broken, it will only become a small blunt piece and will not cause significant harm to the human body; decorative sand strips and logo graphics can be made on the glass surface. The glass hardware uses aluminum alloy door locks and corridor chain accessories, both of which are produced by die extrusion. The aluminum material is made of high-quality aluminum alloy material, which is high in strength and durable. The natural color treatment is elegant and beautiful, and all bolt accessories are made of stainless steel for durability.

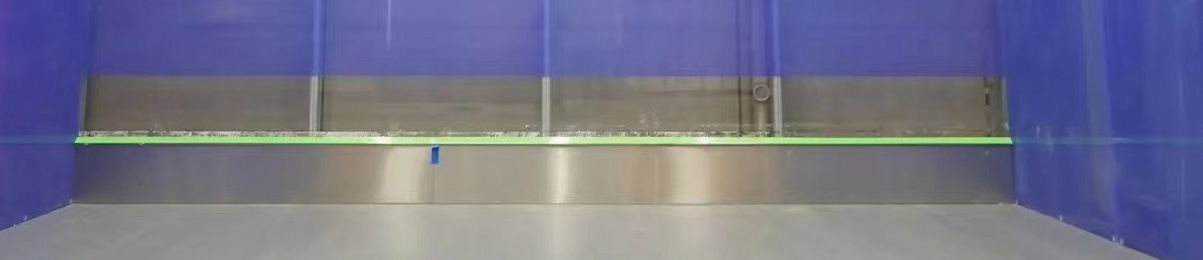

Soundboard boundary system:
The wall boundary is made of internal arc aluminum alloy, all produced by die extrusion. The product has high dimensional accuracy, and its shape meets sports requirements and is beautiful and practical. The surface is spray-painted in red and can be used for a long time without discoloration or damage. The front wall soundboard is made of aluminum alloy soundboard and adjacent slots, all produced by die extrusion. The product has high dimensional accuracy and is easy to install. When the ball hits the soundboard during the game, it will make a crisp and pleasant sound to indicate the hitting mold. The surface is spray-painted in red and beige, which can be used for a long time without wear or loss.
